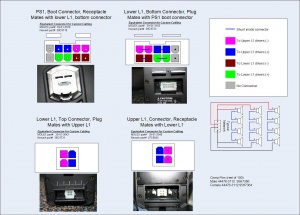

Molex connector pinouts for Classic / Model I / Model II

Connector in Power Stand

• Molex Part # 39-01-2100
• Newark Part # 38C9719

Connector in bottom of Cylindrical Radiator®

• Molex Part # 39-01-3103
• Newark Part # 38C9733

Please click the image to the right to see full sized version.

This applies to all three L1® Models (Classic / Model I / Model II). The internal wiring is different, but the connectors are wired exactly the same.
