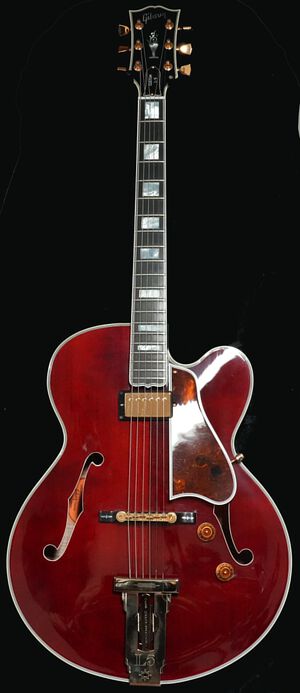

Gibson L5 Wes Montgomery

Body & Construction

Body Style: 17-inch hollowbody archtop (L-5 body dimensions with sharp Venetian cutaway)
Top: Hand-carved solid spruce
Back & Sides: Highly figured solid flame maple
Binding: Multi-ply black and white binding on body, neck, headstock, and F-holes

Neck & Fretboard

Neck Material: 5-piece high-grade maple with walnut center striping
Scale Length: 25.5 inches
Nut Width: 1 11/16 inches (1.6875")
Fingerboard: High-grade ebony with mother-of-pearl block inlays
Frets: 20 frets
Headstock: Classic Gibson L-5 design with mother-of-pearl "Flowerpot" inlay

Electronics & Hardware

Pickup: Single Gibson '57 Classic Humbucker (mounted exclusively in the neck position)
Controls: 1 Master Volume, 1 Master Tone
Bridge: ABR-1 Tune-o-Matic with an ebony base
Tailpiece: Gold-plated L-5 trapeze tailpiece
Hardware Finish: Gold

Gibson Custom L-5 Wes Montgomery Analysis

The Gibson L-5 Wes Montgomery is widely considered the ultimate "jazz box". Introduced as a dedicated signature model to honor jazz legend Wes Montgomery, this guitar replicates his preferred L-5 configuration—featuring a single neck humbucker directly over the body's sweet spot and an X-braced carved spruce top to maximize warm acoustic resonance without unnecessary body routs. Late-1990s models from Gibson's Historic/Custom division (often supervised or built by legendary master luthier James Hutchins) represent some of the highest-quality modern archtops Gibson ever produced.

Reviews Summary

The Ultimate Jazz Tone: Reviewers universally consider this the benchmark for traditional jazz tone. Removing the bridge pickup gives the single '57 Classic humbucker a thick, rich, and woodier acoustic response with incredible note definition and sustain.
Masterwork Craftsmanship: Jazz players and collectors consistently highlight the stunning build quality. From the hand-carved solid spruce top and flamed maple back to the multi-ply binding and signature "Wes Montgomery" engraved gold trapeze tailpiece, it is revered as functional art.
Playability & Feedback Management: The 25.5" scale length, ebony fingerboard, and classic 5-piece maple/walnut neck profile are praised for effortless playing. Being a full 17" carved hollow body archtop, players note that high stage volumes require careful placement to manage feedback, though its primary domain is controlled acoustic/amplified jazz settings.
